Технические данные

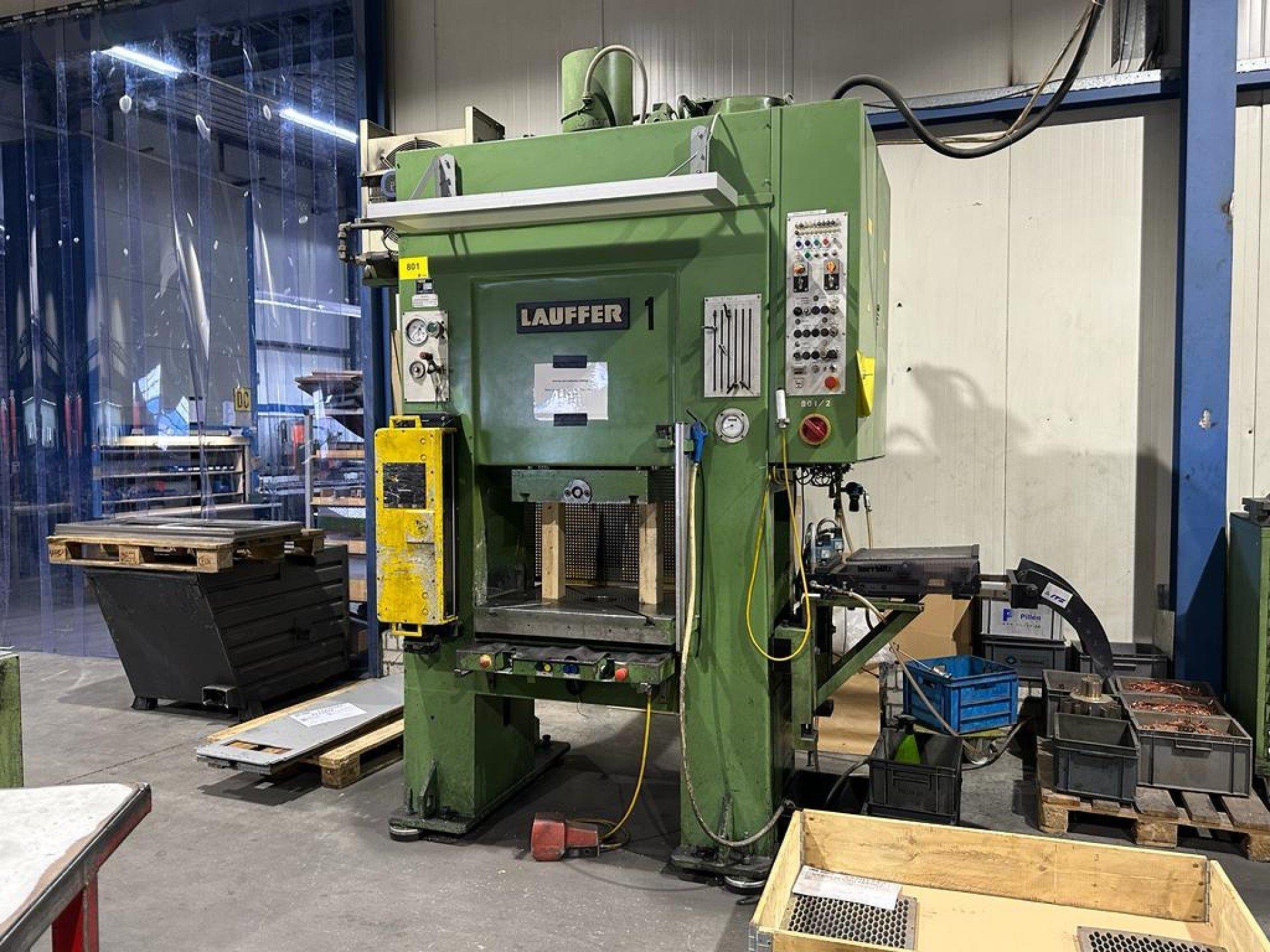

Lauffer PT Hydraulic frame presses for metal forming; From 630 kN to 10.000 kN freely configurable for your application. Whether forming, punching, cutting or embossing, solid and variable press frame concept allows individual adaptation of the press size to your requirements. For smaller presses in monobloc design
R-PTFrame presses with column-guided ram, centric cutting shock-damping and fixed stop
Capacity Kg: 100000
Distance between column:755mm
Table Length: 710mm
Table Width: 560mm
Table Height: 450mm
Ram stroke: 200mm
Approche speed: 350mm/min.
Working speed: 34mm/min.
Return speed: 360mm/min.
Power: 15kW
Length: 2600mm
Width: 1600mm
Height: 3100mm
Weight: 5300kg
Дилер: MACH4METAL BV
