Технические данные
Control: HEIDENHAIN MillPlus /3R-WorkMaster +3R-WorkShopManager
Operating hours: 30452

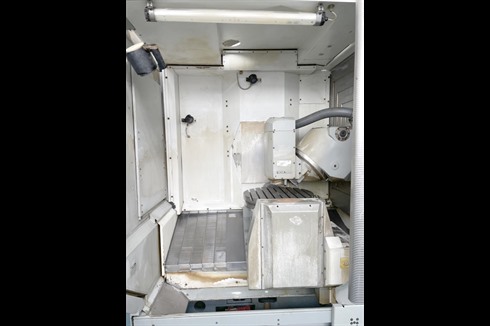

Technical data
Number of axis simultaneous: 5
Number of tables: 1
Number of spindles: 1
Circulary table diameter: 630 mm
Number of T-channels: 9
Distance of the T-slots: 63 mm
T-channel width: 14H7 mm
Centering bore diameter: 50H6 mm
Longitudinal travel (X-axis): 600 mm
Transversal travel (y-axis): 700 mm
Vertical travel (z axis): 600 mm
Dimension of the workpice:
Height: 1000 mm
Diameter: 920 mm
Table load max.: 500 kg
Table divisions (B): 360 °
A axis
Swivel angle (a-axis): +45/-30 °
Holding torque A-axis: 3866 Nm
Clamping torque C-axis: 6008 Nm
Torque max.: 2650 Nm

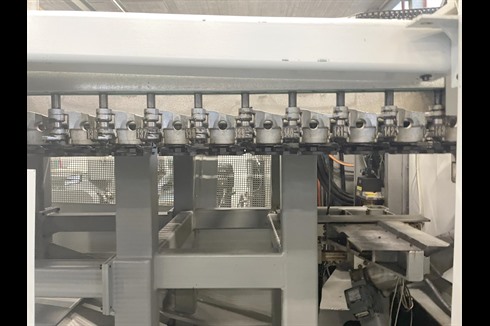

Tool changer:
Number of tools: 180
Tool diameter: 80 mm
Diameter with free adjacent pockets: 160 mm
Tool lenght: 350 mm
Max. tool-weight: 10 kg
Spindle nose SK: 40 DIN 69871
Spindle speeds:
stepless
up to: 18000 rpm
Feeds:
stepless
longitudinal from: 20 mm/min
up to: 15000 mm/min
transversal from: 20 mm/min
up to: 15000 mm/min
vertical from: 20 mm/min
up to: 15000 mm/min
Rapid traverse:: 40 m/min
Measurement system:
Resolution: 0.001 µm
Air connect: 5 - 8 bar
Voltage 50 Hz 3x: 400 Volt
Total power required: 44 kVA
Noise level: 80 dB (A)
Machine's weight about: 7500 kg
Overall dimensions machine:
Length: 7500 mm
Width: 4500 mm
Height: 2628 mm
Various accessories:
Set of toolholders: SK 40 ca 150x
High pression colant device: 40 bar
Internal coolant supply (cts)
Tool setter Renishaw
Lamp
Rotating viewing window
Switch cabinet Air conditioner
