Технические данные

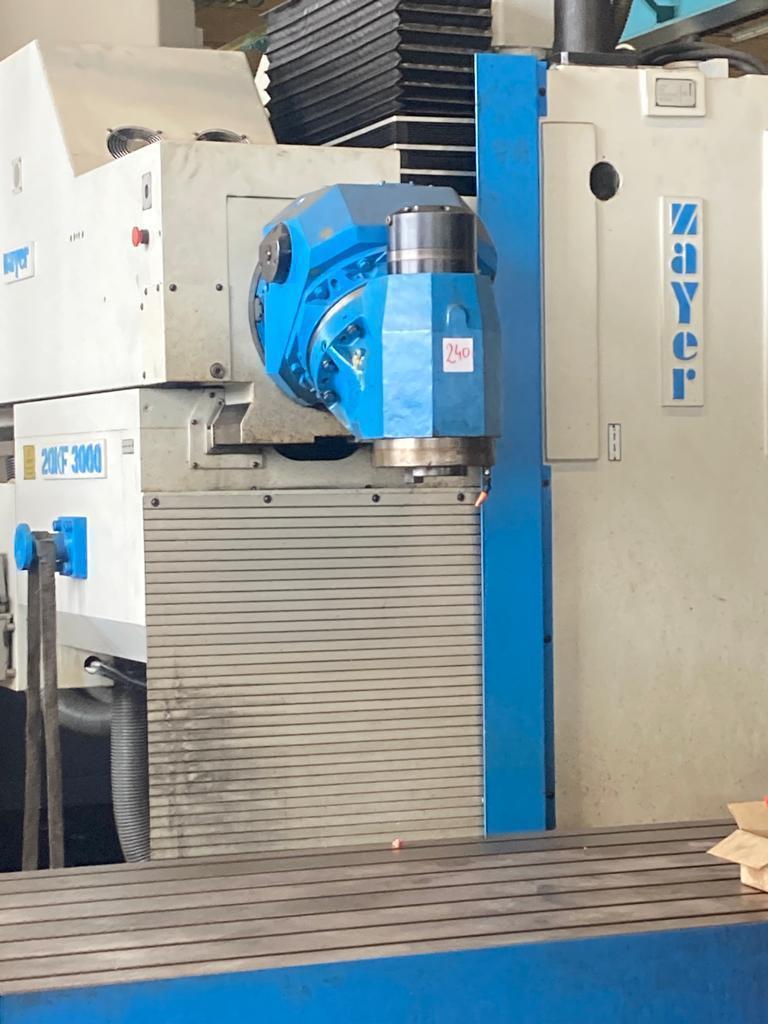

Bed type milling machine ZAYER - 20 KF 3000
Automatic head 2 x 180 Gr
Central lubrication
Heidenhain TNC 426
Heidenhain HR-410 Handwheel
X-Axis: 2705mm
Y-Axis: 1209mm
Z-Axis: 1004mm
Table Length: 3000mm
Table Width: 1000mm
Table load: 10000
Power on spindle: 22kW
Spindle speeds: 3000Rpm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 15000mm/min.
Feed rate Y-Axis: 15000mm/min.
Feed rate Z-Axis: 15000mm/min.
Millinghead auto-index:2 x 180 with 144 positions°
Length: 7200mm
Width: 3300mm
Height: 3300mm
Weight: 18500kg
