Gleason - CB

  • ProducentGleason
  • Typ / ModelCB
  • ID NumerF3396
  • Rok produkcji2000

Dane techniczne

  • Moduł0 mm

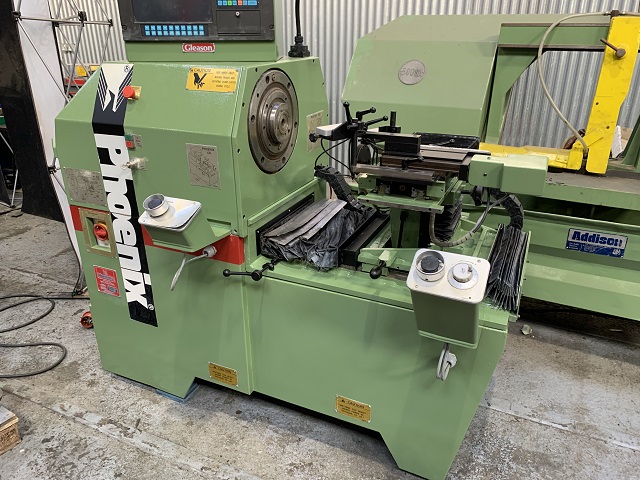

GLEASON PHOENIX CUTTER BUILD MACHINE, Model CB, Serial No 930401, MFD October 2000, The Phoenix® Cutter Build Machine Is An Advanced Computer-Controlled Bevel Gear Cutter Set-Up And Measuring Unit. The Machine Can Be Used To Build Face Mill And Face Hob Cutters To A High Degree Of Accuracy, Work Piece Capacity Face Milling Cutter Diameter RSR Completing ED 82 – 457mm, RSR Completing SD 127 – 457mm, RSR Alternate SD 127 – 457mm, RSR Alternate ED 228mm,
Face Hobbing Cutter Radius PENTAC & TRIAC Fine Pitch 51 – 105mm, PENTAC & TRIAC Coarse Pitch 76 – 175mm, CYCLOCUT 100 – 210mm, Spindle Nose Taper 58.22mm, Axis Control C Axis Cutter Spindle Servo drive With Heidenhain Rotary Encoder, Z1 Axis Blade Stop             Servo drive With Heidenhain Linear Scale, Approximate Dimensions 1841 x 999 x 1775mm, Approximate Weight 1180kg

Handlowiec: NORTHERN MACHINE TOOLS (ENGINEERING) LTD

NORTHERN MACHINE TOOLS (ENGINEERING) LTD
Zapytaj o cenę
