Technische gegevens
Control: HB CNC 100
Technical data
Table length: 800 mm
Table width: 450 mm
Grinding length: 800 mm
Grinding width: 400 mm
Grinding height: 500 mm
Max. distance from table
to spindle-centreline: 150 / 700 mm
Longitudinal travel (X-axis): 900 mm
Transversal travel (y axis): 400 mm
Vertical travel (z axis): 550 mm
Automatic cross-feed:
stepless
from: 0.01 m/min
up to: 4 m/min
Table speeds:
stepless
from: 0.02 m/min
up to: 25 m/min
Automatic vertical feed:
from: 1 mm/min
up to: 2000 mm/min
Diameter of grinding wheel: 400 mm
Width of the grinding wheel: 80 mm
Wheel int. diameter: 127 mm
Grinding wheel speeds:
from: 1650 rpm
Voltage 50 Hz 3x: 380 Volt
Grinding spindle motor: 23 kW
Total power required: 45 kVA
Machine's weight about: 4800 kg
Overall dimensions machine:
Length: 3200 mm
Width: 2400 mm
Height: 2400 mm

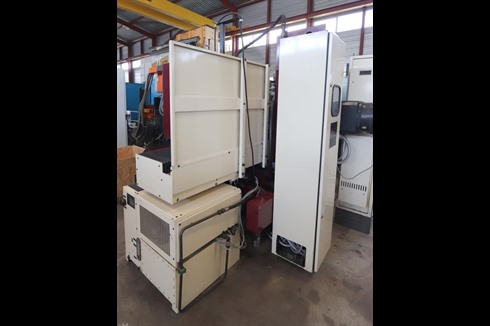

Various accessories:
Coolant system
Paper filter facility
Electrical magnetic chuck
Length: 800 mm
Width: 350 mm
Set of flanges
Balancing arbor
DIAFORM profiling device: manual
