Technische gegevens

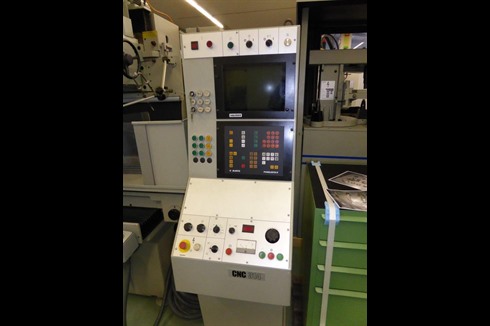

Control: CNC 314 / POSELESTA II / (X, Y, Z, W)
Operating hours: 13000
Technical data
Table length: 600 mm
Table width: 380 mm
Longitudinal travel (X-axis): 400 mm
Transversal travel (y-axis): 250 mm
Vertical travel (z axis): 450 mm
Table load max.: 300 kg
Drill capacity in steel: 30 mm
Taper in spindle: ISO: 30
Stroke of drilling spindle (Z-axis): 140 mm
Bore diameter max.: 220 mm
Distance table to spindle: 0 - 550 mm
Spindle speeds:
stepless
from: 30 rpm
up to: 4000 rpm
Feeds:
from: 500 mm/min
up to: 1000 mm/min
Drill spindle slide:
number (steps): 4
from: 0.01 mm/r
up to: 0.23 mm/r
Voltage 50 Hz 3x: 380 Volt
Machine's weight about: 3500 kg
Overall dimensions machine:
Length: 1900 mm
Width: 1700 mm
Various accessories:

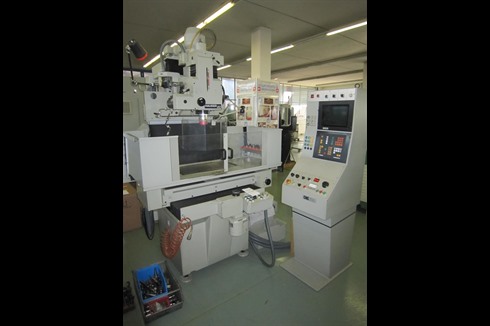

Manufacturer: ELESTA Visulesta II
Handelaar: MULLER MACHINES SA
