Technische gegevens
Control: HEIDENHAIN TNC 426
Operating hours: 1800
Technical data
Number of axis total: 4
Table length: 1150 mm
Table width: 700 mm
Turret stations:: 60
Longitudinal travel (X-axis): 1000 mm
Transversal travel (y-axis): 750 mm
Vertical travel (z axis): 750 mm
Tool changer:: TC 30
Number of tools: 30
Tool diameter: 77 mm
Diameter with free adjacent pockets: 115 mm
Tool lenght: 305 mm
Spindle nose: HSK: A63
Distance from vertical
spindle to table: 115 mm
Spindle speeds:
stepless
up to: 24000 rpm
Feed range: 1500 mm/min
Rapid traverse:: 22 m/min

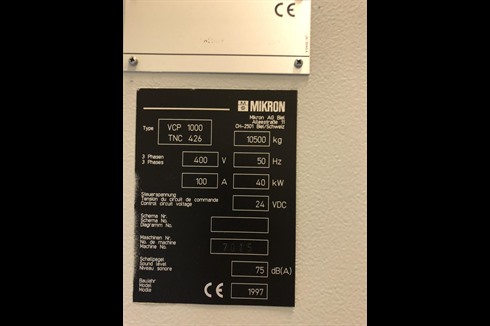

Voltage 50 Hz 3x: 400 Volt
Total power required: 40 kW
Time under power: 21859 Hour
Operating time: 7308 Hour
Spindle run time: 1564 Hour
Machine's weight about: 10500 kg
Overall dimensions machine:
Length: 5220 mm
Width: 3100 mm
Height: 2840 mm
Various accessories:
Tool changer:
Number of tools: 30
Internal coolant supply (cts)
Chip conveyor
Dividing attachment 4th axis

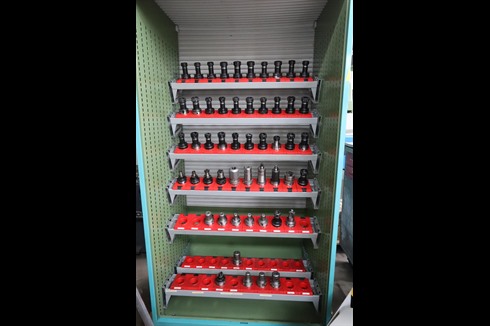

Set of toolholders: 45 pce.
Tool cabinet: LISTA
Description: only 1800 spindle hours, spindle has been replaced
