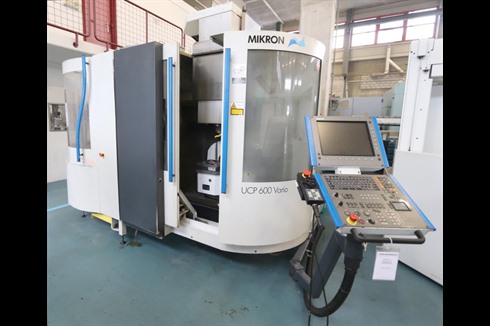

Technische gegevens
Control: HEIDENHAIN iTNC 530
Operating hours: 64731
Technical data
5-sided machining
Number of axis simultaneous: 5
Table length: 320 mm
Table width: 320 mm
Longitudinal travel (X-axis): 600 mm
Transversal travel (y-axis): 450 mm
Vertical travel (z axis): 450 mm
Length
Table load max.: 75 kg
Table divisions (B): -115 / +30 °
Table divisions (C): 360 °
Pallets:: 3R GPS
Pallets chanching device:
Automatic pallet change-unit (number of paletts)
number: 6
Length: 320 mm
Width: 320 mm
Transport weight: 200 kg
Tool changer:
Addet tool-holder magazine
Number of tools: 170
Spindle nose:: HSK-A 63
Spindle speeds:
stepless
up to: 20000 rpm
Feeds:
Voltage 50 Hz 3x: 400 Volt
Machine's weight about: 7700 kg
Overall dimensions machine:
Length: 3500 mm
Width: 4800 mm
Height: 3000 mm
Various accessories:
Set of toolholders
Coolant system
Paper filter facility
Chip conveyor
Pallets chanching device:
Pallets: number: 7
NC Rotary and swiveling table
Electronic hand held control
Lamp
Set-up place (number)
Rotating viewing window
