Prijsaanvraag
  • MerkMikron
  • Type/ModelHSM 600 U
  • Voorraad nummer21543
  • Bouwjaar2003
  • Verkoopprijs€ 000
  • WebsiteHSM 600 U

Technische gegevens

  • Tafellengte mm
  • Tafelbreedte mm
  • Langs X mm
  • Dwars Y mm
  • Vertikaal Z mm
  • Posities ATC
  • Aantal pallets
  • CNC Merk
  • CNC Model


Control: HEIDENHAIN iTNC 530
Operating hours: 44574
Technical data
Number of axis total: 5
Number of spindles: 1
Table load max.: 800 kg
Longitudinal travel (X-axis): 600 mm
Transversal travel (y-axis): 600 mm
Vertical travel (z axis): 500 mm
B axis swivelling range: +30 / - 110 °
C axis: 360 °
Tool magazine number of tools: 30
Tool diameter max.: 75 mm
Tool lenght: 210 mm
Max. tool-weight: 2.5 kg
Spindle nose: HSK: E50
Spindle speeds:
stepless
from: 100 rpm
up to: 36000 rpm
Rapid traverse:: 30 m/min
Voltage 50 Hz 3x: 400 Volt
Spindle motor: 12.5 / 22 kW
Total power required: 28 kW
Noise level: 75 dB (A)
Machine's weight about: 9500 kg
Overall dimensions machine:
Length: 4000 mm
Width: 3700 mm
Height: 2500 mm
Various accessories:
Set of toolholders
Coolant system
Water cooler
Touch Probe
Handwheel electroinic
Lamp

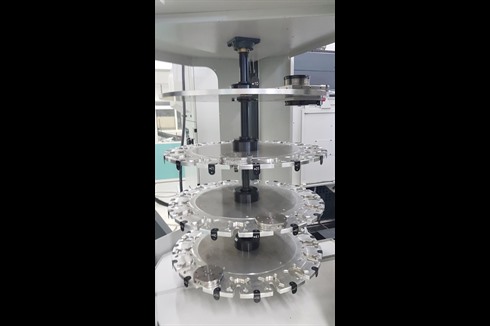

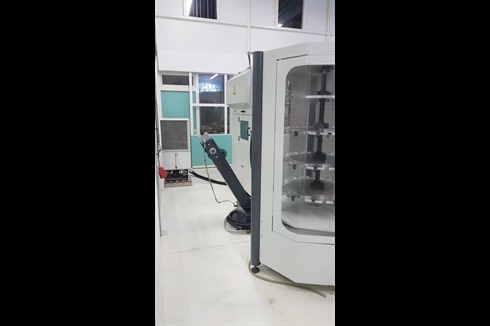

Loading roboter: EROWA

Handelaar: MULLER MACHINES SA
