Technische gegevens
Control: GE FANUC Series 18-T
Technical data
Centre height: 175 mm
Distance between centres: 1000 mm
Max. grinding diameter: 348 mm
Grinding length: 1000 mm
Workpiece weight on centres max.: 250 kg
Grinding wheel:
Diameter: 500 mm
Width: 100 mm
Peripheral speed: 45 m/s
Longitudinal slide:
Max. travel: 1400 mm
Resolution: 0.0001 mm
Feed speed up: 8000 mm/min
Transversal slide:
Max. travel: 340 mm
Resolution: 0.0001 mm
Feed speed up: 8000 mm/min
Swivelling range: +9/-9 °
Work piece spindle head:
speeds:
from: 20 rpm
up to: 1000 rpm
rotatable: +30/-45 °
Précision d'usinage: 0.0005 mm
taper in spindle: MT: 6
Tailstock:
Taper in tailstock:: 4 MT
Tailstock travel of barrel: 50 mm
Voltage 50 Hz 3x: 400 Volt
Grinding spindle motor: 15 kW
Total power required: 26.5 kW
Total power required: 16 kVA
Machine's weight about: 5100 kg
Overall dimensions machine:
Length: 4410 mm
Width: 3550 mm
Height: 1900 mm
Various accessories:
Angular infeed

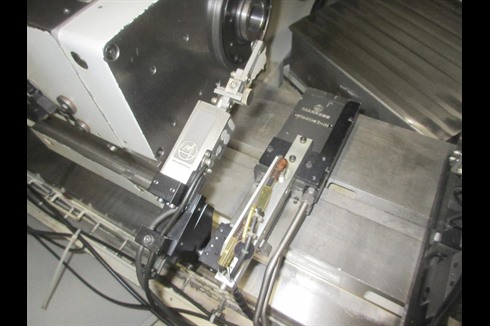

Measuring head MARPOSS
Set of grinding wheels
