Technische gegevens
Technical data
Centre height: 150 mm
Distance between centres: 680 mm
Grinding wheel right and left hand
Max. Longitudinal travel: 620 mm
Grinding wheel:
Grinding weehl left side:
Diameter: 350 mm
Width: 50 mm
Bore: 127 mm
Grinding wheel right side:
Diameter: 250 mm
Width: 25 mm
Bore: 127 mm
Grinding wheel speeds:
number (steps): 3
from: 1640 rpm
up to: 2300 rpm
Hydraulic cross travel: 0/1.2 mm
Angular displacement: -45/+90 °
Work piece spindle head:
speeds:
stepless
from: 65 rpm
up to: 500 rpm
rotatable: 360 °
Spindle taper:: 4 MT
Taper in tailstock:: 3 MT
Table angular displacement: +/-8 °
Table speed:
stepless
from: 0 m/min
up to: 5 m/min
Mini. auto. longitudinal travel: 0.001 mm
Voltage 50 Hz 3x: 400 Volt
External Grinding wheel motor: 3 kW
Machine's weight about: 2600 kg
Overall dimensions machine:
Length: 2340 mm
Width: 1445 mm
Height: 1900 mm
Various accessories:
Digital readout number of axis:: 2
Manufacturer: Tschudin
Tailstock with fine adjustement
Measuring control: Marposs
3-jaw chuck diameter: 110 mm
Sparking-out attachment

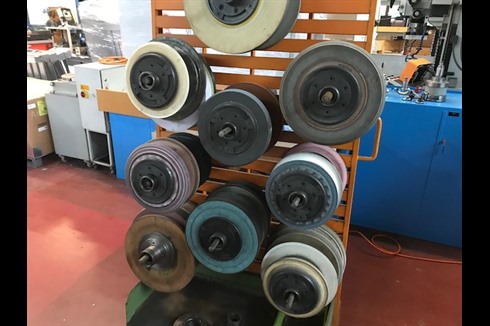

Set of grinding wheels
Set of flanges
Lamp
Cycles control
Intermittant grinding with left side infeed
Intermittant grinding with right side infeed
Intermittant grinding right and left side infeed
Preselected spark out time for all cycles
