Tschudin - HTG 610.10

  • MerkTschudin
  • Type/ModelHTG 610.10
  • Voorraad nummer18293
  • Bouwjaar1983
  • Verkoopprijs€ 000
  • WebsiteHTG 610.10

Technische gegevens

  • Slijpdiameter mm
  • Slijplengte mm
  • Werkstukgewicht kg
  • CNC Merk
  • CNC Model


Technical data
Centre height: 150 mm
Distance between centres: 680 mm
Max. Longitudinal travel: 620 mm
Grinding wheel:
Diameter: 350 mm
Bore: 127.0 mm
grinding wheel width: 50 mm
Grinding wheel speeds:
number (steps): 3
from: 1640 rpm
up to: 2300 rpm
Work piece spindle head:
speeds:
stepless
from: 65 rpm
up to: 500 rpm
rotatable: 360 °
Spindle taper:: 5 MT
Taper in tailstock:: 3 MT
Table angular displacement: 8 °
Table speed:
stepless
up to: 5.0 m/min
Voltage 50 Hz 3x: 380 Volt
External Grinding wheel motor: 4.0 HP
Total power required: 6.8 HP
Machine's weight about: 2500 kg
Overall dimensions machine:
Length: 2700 mm
Width: 1800 mm
Height: 1900 mm
Various accessories:

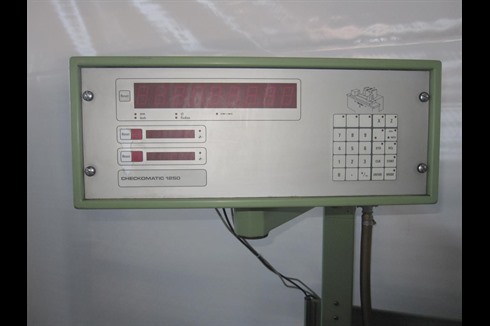

Digital readout number of axis:: 2
Manufacturer: Tschudin Checkomatic
Paper filter facility
Sparking-out attachment
Lamp
Raising block for centers: 50 mm
Full automatic working cycle
Infeed grinding
Intermittant grinding with left side infeed
Intermittant grinding with right side infeed
Intermittant grinding right and left side infeed
Preselected spark out time for all cycles
