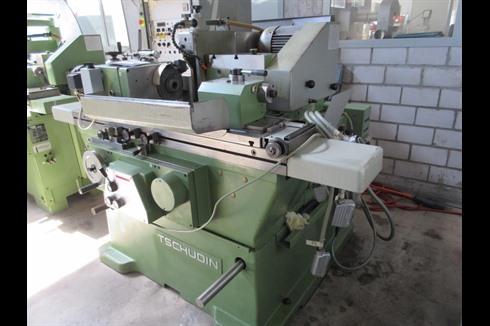

Tschudin - HTG 412

  • MerkTschudin
  • Type/ModelHTG 412
  • Voorraad nummer19356
  • Bouwjaar1980
  • Verkoopprijs€ 000
  • WebsiteHTG 412

Technische gegevens

  • Slijpdiameter mm
  • Slijplengte mm
  • Werkstukgewicht kg
  • CNC Merk
  • CNC Model


Technical data
Centre height: 100 mm
Distance between centres: 480 mm
Grinding wheel:
Diameter: 350 mm
Width: 50 mm
Bore: 127.0 mm
Grinding wheel speeds:
number (steps): 3
from: 1640 rpm
up to: 2300 rpm
Work piece spindle head:
speeds:
stepless
from: 65 rpm
up to: 500 rpm
rotatable: 360 °
Spindle taper:: 5 MT
Taper in tailstock:: 3 MT
Table angular displacement: 9 °
Table speed:
stepless
from: 0 m/min
up to: 5.0 m/min
Voltage 50 Hz 3x: 380 Volt
External Grinding wheel motor: 3 kW
Workpiece spindle motor: 0.55 kW
Total power required: 5 kVA
Machine's weight about: 2300 kg
Overall dimensions machine:
Length: 1800 mm
Width: 1200 mm
Height: 1500 mm
