Technische gegevens
Technical data
Centre height: 100 mm
Distance between centres: 400 mm
Grinding wheel:
Diameter: 300 mm
Width: 50 mm
Bore: 127.0 mm
grinding wheel width: 60 mm
Grinding wheel speeds:
number (steps): 3
from: 1500 rpm
up to: 1900 rpm
Work piece spindle head:
speeds:
stepless
from: 65 rpm
up to: 500 rpm
rotatable: 360 °
Spindle hole: 23 mm
Spindle taper:: 4 MT
Taper in tailstock:: 3 MT
Table angular displacement: 9 °
Table speed:
stepless
up to: 5.0 m/min
Voltage 50 Hz 3x: 380 Volt
External Grinding wheel motor: 2.5 HP
Workhead spindle motor: 0.5 HP
Total power required: 4.0 HP
Machine's weight about: 2100 kg
Overall dimensions machine:
Length: 1600 mm
Width: 1200 mm
Height: 1550 mm

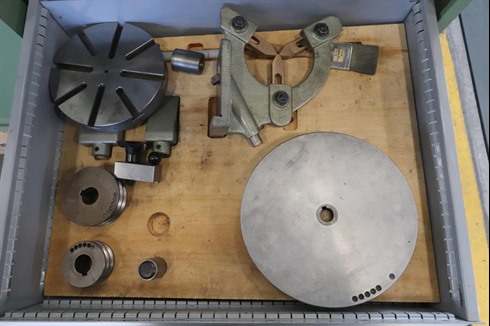

Various accessories:
3-jaw chuck diameter: 135 mm
Macnetic chuck diameter: 150 mm
Coolant system
Paper filter facility
Magnetic separator
Set of grinding wheels
Set of flanges
Fixed steady
Balancing arbor
Set of driving dogs
