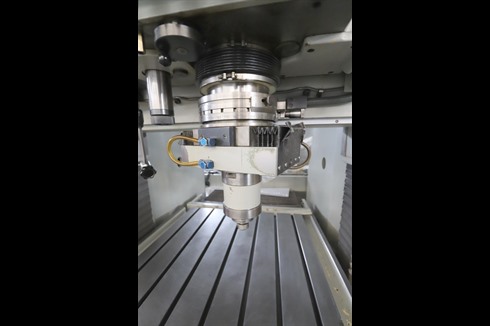

Technische gegevens
Technical data
2 columns execution
Table:
Table length: 1020 mm
Table width: 860 mm
T-channel width: 14 mm
Number of spline: 7
Distance of the T-slots: 100 mm
Table load max.: 800 kg
Longitudinal travel (X-axis): 900 mm
Transversal travel (y-axis): 600 mm
Verticla travel (W-axis): 635 mm
Feeds:
X axis: 5 - 2500 mm/min
Y axis: 5 - 2500 mm/min
W axis: 800 mm/min
Passage from grinding motor to table: 750 mm
Max. grinding diameter: 230 mm
with display-plate: 360 mm
Passage between the columns: 950 mm
Max. angle with taper grinding:
up to: 16 °
up to grinding depth: 44 mm
Vertical travel of grinding spindle:
up to: 180 mm
Travel speeds:
stepless
from: 0.015 m/min
up to: 7.5 m/min
Stroke length Z, infinitely adjustable: 125 mm
Radiale fine feed U-axis up to: 6 mm
Planetary motion speeds: c axis
stepless
from: 5 rpm
up to: 250 rpm
Possible grinding-spindle speeds:
steps: 2
stepless
from: 4500 rpm
up to: 80000 rpm
With air-turbine max.: 160000 rpm
Voltage 50 Hz 3x: 380 Volt
Machine's weight about: 8000 kg
Overall dimensions machine:
Length: 3000 mm
Width: 2570 mm
Height: 2870 - 3505 mm
Various accessories:
Tool cabinet
Slot grinder
Grinding wheel holder: 60 - 80 mm
Grinding wheel holder: 20 - 30 mm
Grinding wheel holder: 30 - 50 mm
Grinding wheel holder: 50 - 60 mm
Rotary table
Digital readout number of axis:: 2
Manufacturer: ELESTA
Centering microscop
Redressing device with magnetic foot
Set of grinding arbor
Set of grinding arbors
Grinding turbines:
steps: 2
max. speed: 45000 rpm
max. speed: 80000 rpm
Lamp
Set of clamping tools
Grinding contact indicator
Cantilever plate 45°
Centering divice with dial indicator
Plexi splash-guard
Set of grinding wheels
Angle plate
Alignment plate
