Technische gegevens
Technical data
1 column execution
Table length: 595 mm
Table width: 320 mm
Longitudinal travel (X-axis): 400 mm
Transversal travel (y-axis): 250 mm
Travel of the vertical slide: 500 mm
Passage from grinding motor to table: 490 mm
Distance from spindle-center to vertical slide: 310 mm
Max. grinding diameter: 220 mm
with display-plate: 280 mm
Max. angle with taper grinding:
up to: 12.0 °
Vertical travel of grinding spindle:
stepless from: 1 mm
up to: 110 mm
Travel speeds:
stepless
up to: 6.0 m/min
Planetary motion speeds: c axis
stepless
up to: 330 rpm
Voltage 50 Hz 3x: 380 Volt
Spindle motor: 7.50 HP
Machine's weight about: 2000 kg
Overall dimensions machine:
Length: 1500 mm
Width: 1300 mm
Height: 2200 mm

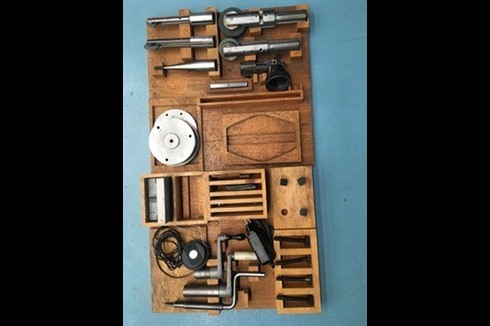

Various accessories:
Centering device
Slot (key way) grinding device
Rotary table diameter
with electric motor
3-jaw chuck diameter
Digital readout number of axis:: 2
Centering microscop
Wheel trueing attachment
Set of grinding arbor
Set of grinding arbors
Set of clamping tools
Grinding motor 45 S
Grinding motor 80 S
Set of grinding wheels
