Technische gegevens
Control: HEIDENHAIN TNC 360
Technical data

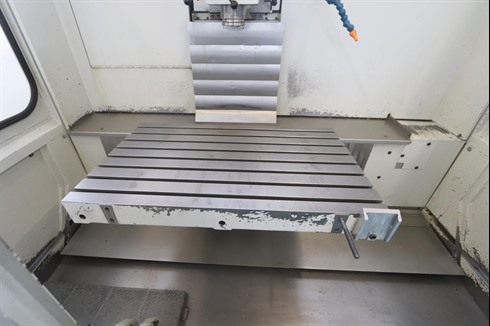

Table length: 900 mm
Table width: 530 mm
Longitudinal travel (X-axis): 560 mm
Transversal travel (y axis): 500 mm
Vertical travel (z axis): 400 mm
Spindle speeds:
stepless
horizontal from: 5 rpm
up to: 5000 rpm
vertical from: 5 rpm
up to: 5000 rpm
Spindle nose: ISO: SK 40 DIN 69871
Feeds:
longitudinal from: 1 mm/min
up to: 8000 mm/min
transversal from: 1 mm/min
up to: 8000 mm/min
vertical from: 1 mm/min
up to: 8000 mm/min
Rapid traverse:: 10 m/min
Voltage 50 Hz 3x: 380 Volt
Machine's weight about: 3350 kg
Overall dimensions machine:
Length: 3930 (2625) mm
Width: 2650 mm
Height: 2140 mm
Various accessories:
Electronic hand held control
Coolant system
