Technische gegevens
Technical data
Work capacity:max. diameter: 120 mm
max. module: 2
Workpiece length max.: 130 mm
Pitch min.: 6
max.: 325
Spiral lead:
from: 2 mm
up to: 5000 mm
Spiral lead angle:
from: 0 °
up to: 90 °
Milling cutter speeds:
number (steps): 14
from: 140 rpm
up to: 1870 rpm
Feeds:
number (steps): 13
from: 0.05 mm/min
up to: 3.0 mm/min
Voltage 50 Hz 3x: 380 Volt
Power: 1.1 kW
Total power required: 0.85 kW
Machine's weight about: 880 kg
Overall dimensions machine:
Length: 1200 mm
Width: 700 mm
Height: 1600 mm
Various accessories:
Multi-programme control (MPS)
Sprinkle cooling device

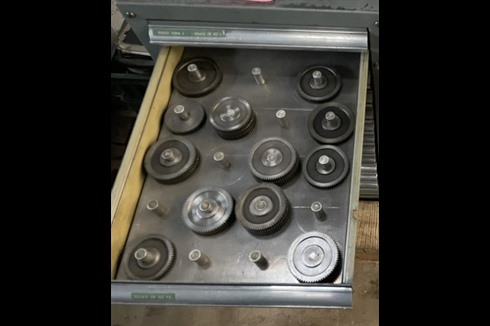

Set of gears
Machine lamp
Tool cabinet
