Données techniques
Manufacturing origin Swiss
Voltage 380 / 50 / 3
Netweight 2500 kg
Dimensions 2800 1500 1500 mm
Total power 6 kw
Custom position 8460.2920
Partly overhauled, new paint
with 2-axes digital read-out RSF Z300
TECHNICAL DATA
Height of centers 125 / 175 mm
Distance between center 1000 mm
Max. travel 1300 mm
Max. swivel 9°
Grinding wheel 400 / 50 / 127 mm
Power of motor 3 kw
Workhead swivel 360°
Speeds 20-400
Internal taper of spindle 5 Morse
Tailstock internal taper 3 Morse
Stroke of sleeve 30
errors and omissions excepted-data gived without obligation

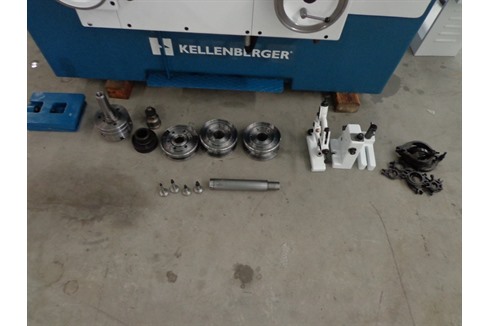

Inventaory 2170107 with following accessories :
- 1 internal grinding spindle SFJ type UJ50x250 n° 156903
- 4 grinding arbors
- 1 reduction sleeve Ø 70/50 mm for internal grinding spindle
- 3 grinding wheel for external grinding ref 20.1
- 1 grinding wheel for external grinding right ref. 20.5
- 1 grinding arbor to grind tools 20.9
- 1 3-jaws chuck Reishauer Ø 195 mm on arbore MT 5
- 1 steady with 3 dogs ref 47.3
- 1 trueing device with diamond
- 1 set of centers
- 1 extractor
- 1 balancibor
- 1 coolant system Vertex PF-40 - 120L - 400V
Marchand: SCEMAMA SA
