Données techniques
INFORMATION
Checked and prepared for production 2023
Manufacturing origin : CH
Voltage : 400V / 50/60Hz / 3ph
Netweight : 3250 + 400 kg
Dimensions : overall 280x260x225 Cm
Custom position : 8456.30 20 :
TECHNICAL DATA
Type of machining : submerged
Maximum workpiece dimensions : 1200x700x400 mm
Maximum workpiece weight : 1500 kg
Dimensions of the table : 900×600 mm
Distance floor to table : 900 mm
Total volume of dielectric : 1200 L

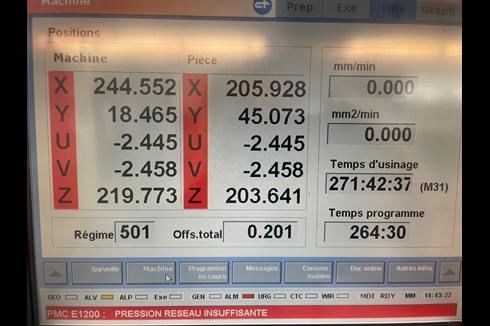

Axes X, Y, Z, U and V
Travel X, Y, Z : 550 x 350 x 400 mm
Travel U, V : 550 x 350 mm
Protection anti-collision : axes X, Y, U, V, Z
Taper machining, max. taper : +/- 30° / 400 mm
Wire diameter available : Ø 0.25 mm (option 0.1/0.2/0.3 mm)
Type of wire guides : type diamant fermé, sans espace
Weight and type of spool available (DIN standard) : 1.6 kg (K 100) à 8 (K 160)
Weight and type of spool available (standard JIS) : 3(P3) à 5(P5)
Programmable wire tension : 0.3 à 3 daN
Wire recovery : built in wire chopper
Dielectric
Paper filters : 2 cartridges
Dielectric temperature : +/- 1°C
Total volume of deionisation resin : 20 L
Maximum injection pressure : 20 bar
Generator : double source Isopulse
Supply : 380/400V 3 phases
Total power : 10 KVA
Maximum cutting speed : 400 mm2/min
Minimum surface roughness : 0.20 micron Ra
Measuring device : linear glass scales
Measurement resolution : 0.5 micron
Servomotors : type AC
errors and omissions excepted-data given without obligation
