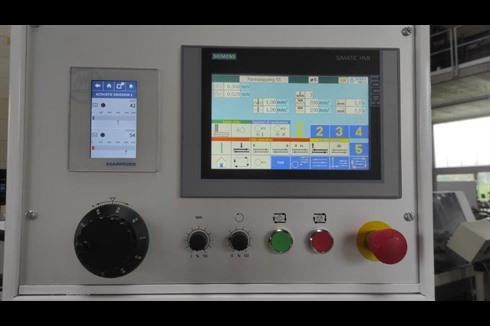

Données techniques
INFORMATION
Manufacturing origin : Swiss
Voltage : 380/50/3
Netweight : 4050 kg
Custom position : 8460.2920
Dimensions : 280x200x210cm
TECHNICAL DATA
:
Centre height : 125/175/225 mm
Between centres : 400/650/1000/1600 mm
Longitudinal slide
Max travel : dist.between centres + 50 mm
Min automatic travel : 0.5 mm
Speed : 50-5500 mm/min
Reversal dwell : 0 – 9,9 s
Max swivel of table, 400/650/1000/1600 : 12°/10°/8,5°/6°
Wheelhead slide
Max travel : 250 mm
Rapid approach : 50 mm
Plunge depthe in Ø : 3,8 mm
Infeed 1 : 0,05-10 mm/min
Infeed 2 : 0,015-0,05 mm/min
Incremental infeed : 0,001-0,099 mm
Wheelhead left
Wheel, Ø x width x bore : 400x80x127 mm
Power : 5,5 kW
Peripheral speed : 35 m/s.
Speeds : 1670/2110 min-1
Initial positioning : 100 m
Workhead
Swivel range : 0°-90°
Speeds : 60/129/278/600 min-1
Fitting taper : morse 5
Collets : W25
Driving power : 0,55 kW
Max weight of piece between centres : 100 kg
Live grinding : 60 Nm
Tailstock
Fitting taper : Morse 3
Travel of barrel : 30 mm
Guaranteed accuracy
Surface straightness, better than : DIN 8630
Roundness on live spindle : 0,0004 mm
Connection values
Total power requirement : max 13 kVA
Max allowed tension fluctuations : + 15 % – 10 %
Max permissible frequency fluctuation : +/- 3 %
Air pressure : 5 bar
errors and omissions excepted data given without obligation
