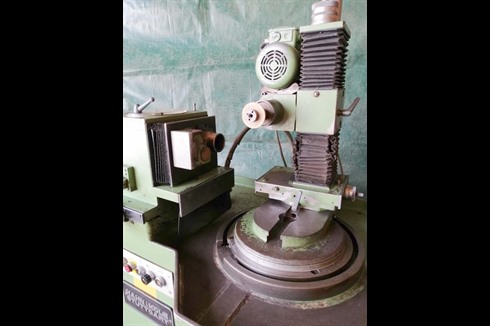

Hahn & Kolb - WS 54

Hahn & Kolb - WS 54
  • Hahn & Kolb - WS 54
  • Hahn & Kolb - WS 54
  • Hahn & Kolb - WS 54
  • Hahn & Kolb - WS 54
  • Hahn & Kolb - WS 54
  • Hahn & Kolb - WS 54

Price request

Technical details

  • Center distance mm
  • Grinding head Z-axis mm
  • Center height mm
  • CNC Brand
  • CNC Model


Technical data
Centre height: 200 mm
Distance between centres: 280 mm
Max. grinding diameter: 200 mm
Grinding-wheel diameter: 125 mm
Taper in spindle:: 5 MT
grinding spindle:
Longitudinal way of table: 150 mm
Transversal way of the table: 140 mm
Slewing range of grinding head:
horizontal: 90 °
vertical: 90 °
Grinding spindle speeds:
number (steps): 3
from: 4500 rpm
up to: 7100 rpm
Voltage 50 Hz 3x: 380 Volt
Grinding spindle motor: 3 HP
Machine's weight about: 560 kg
Overall dimensions machine:
Length: 620 mm
Width: 500 mm
Height: 1500 mm
Various accessories:
Set of collets
Set of grinding wheel arbors
Dividing plates
Set of grinding wheels
Grinding wheel guard

Dealer: MULLER MACHINES SA

MULLER MACHINES SA
Price request
