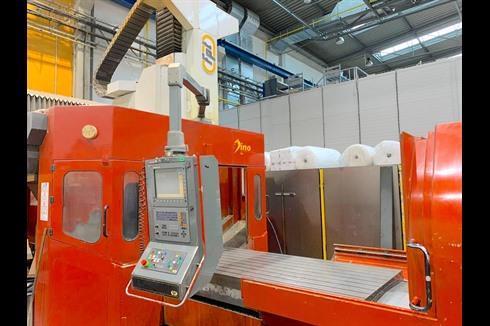

FPT - DINO

FPT - DINO
  • FPT - DINO
  • FPT - DINO
  • FPT - DINO
  • FPT - DINO

Price request
  • BrandFPT
  • Type/ModelDINO
  • Stock Number3445

Technical details

  • Table length3000 mm
  • Table width1200 mm
  • Longitudinal X2800 mm
  • Cross Y2200 mm
  • Vertical Z800 mm
  • Positions ATC40
  • Positions APC0
  • CNC BrandHeidenhain
  • CNC Model530

Capacity: 2800x2200x800 mm
   WORKING CAPACITY   Longitudinal (x): 2800 mm
   Vertical (z): 800 mm
   Cross (y): 2200 mm
   Distance between columns: 1672 mm
   CNC   Cnc: Heidenhain 530
   HEAD 1   Type: TULCE
   Spindle taper: HSK63A
   A axis: 360.000x0,001 °
   C axis: 360.000x0,001 °
   Max speed: 18000 Rpm
   Max power: 20 Kw
   Coolant: CTS 20Bar

   HEAD 2   Max speed: 10000 Rpm
   Max power: 44 Kw
   FEEDS   Rapid x: 35 m/min
   Rapid y: 35 m/min
   Rapid z: 35 m/min
   TABLE   Floorspace (lxwxh): 3000x1200 mm
   Capacity: 8000 Kg
   ATC   Positions: 40

Total power supply: 63,2 Kw
Machine total weight: 41300 Kg
High pressure: 20Bar

Dealer: GAMBA GIOVANNI SRL
