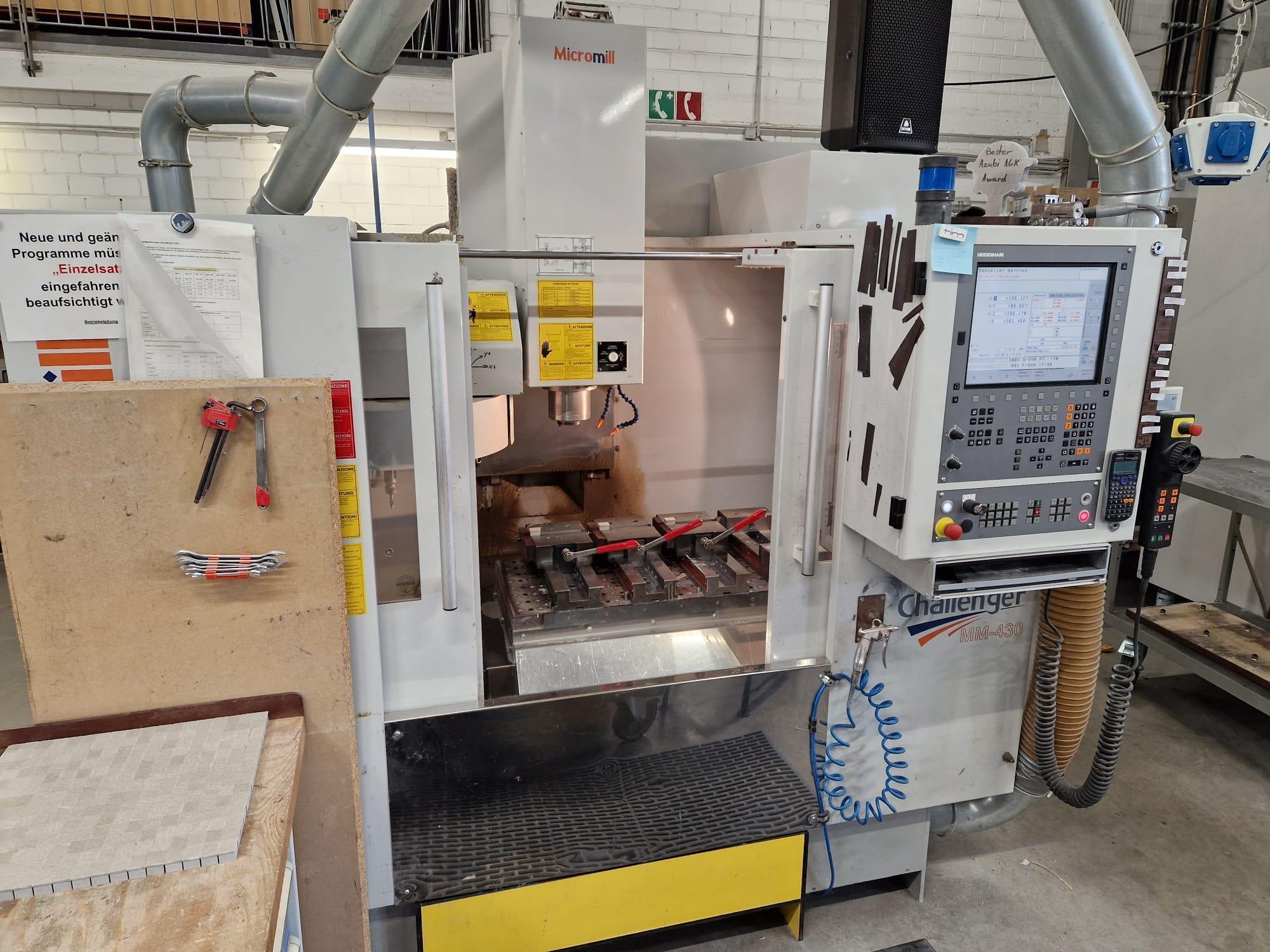

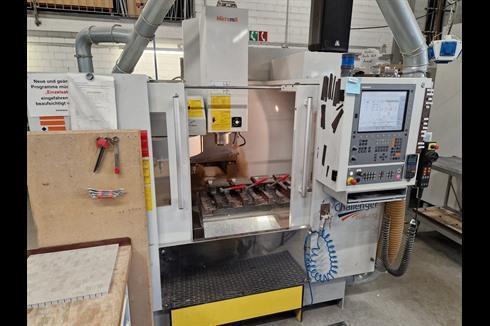

Micromill - Challenger MM-430

• Print
• Add to favorites

• BrandMicromill
• Type/ModelChallenger MM-430
• Stock Number7522
• Year2011
• WebsiteChallenger MM-430

Technical details

• Table length900 mm
• Table width410 mm
• Longitudinal X760 mm
• Cross Y430 mm
• Vertical Z390 mm
• Positions ATC24
• Positions APC0
• CNC BrandHeidenhain
• CNC ModelHeidenHain iTNC 530

X - Travel:              760mm
Y - Travel:              430mm
Z - Travel:              390mm
Table Length:            900mm
Table Width:             410mm
Table load:              350
Feed rate X-Axis:        24000mm/min.
Feed rate Y-Axis:        24000mm/min.
Feed rate Z-Axis:        24000mm/min.
Spindle Taper:           40ISO/Bt/Mk
Power on spindle:        7.5kW
Speeds / ranges:         8000Rpm

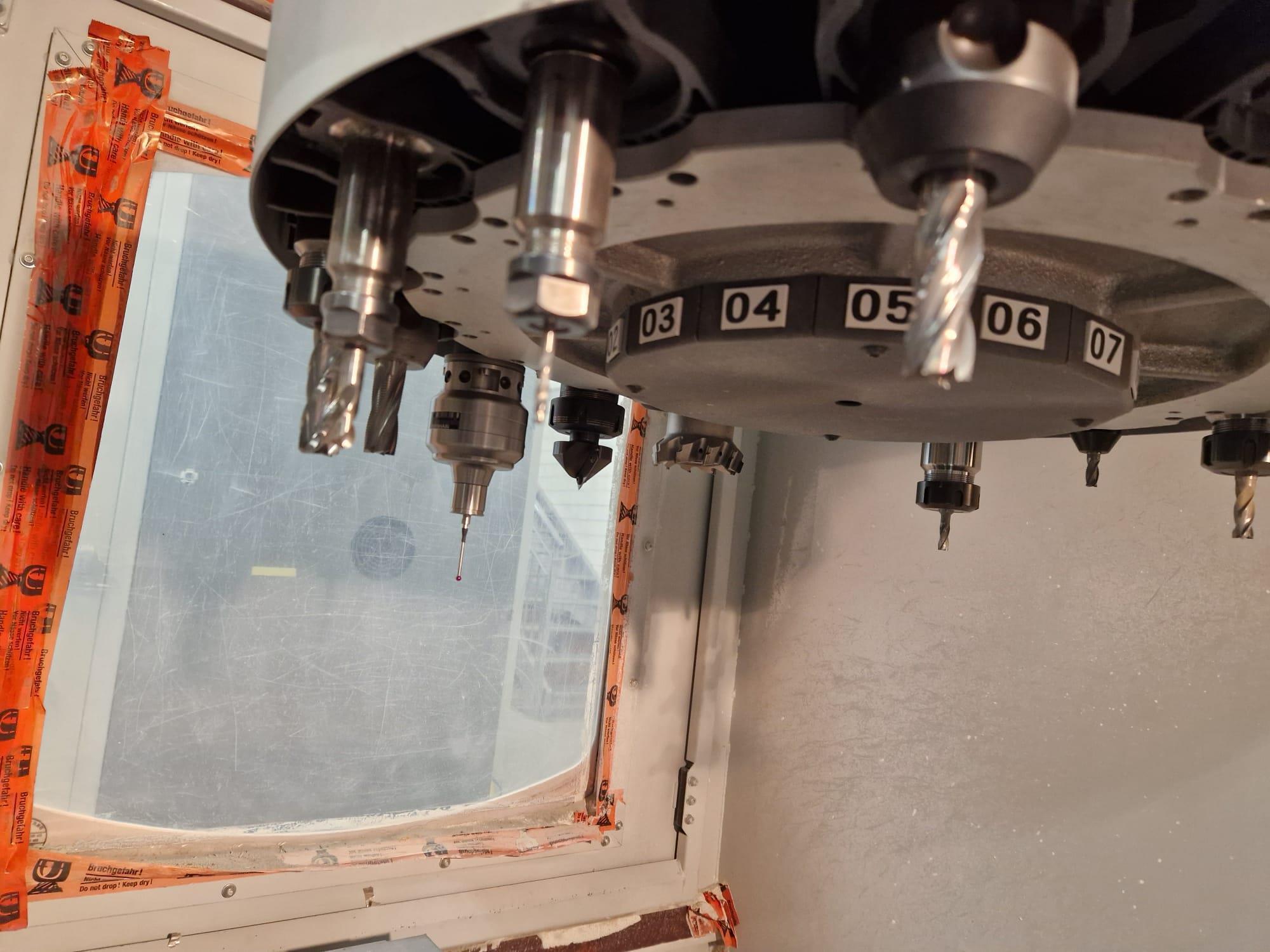

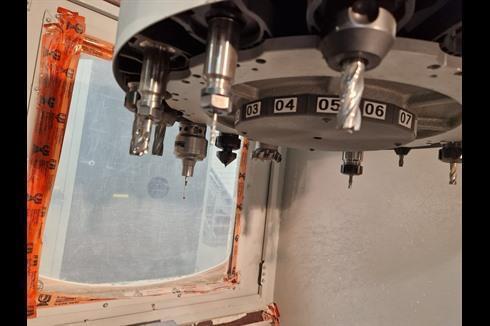

ATC / revolver:          24
Number of controlled axis:3
Length:                  2200mm
Width:                   2000mm
Height:                  2400mm
Weight:                  3700kg

Dealer: MACH4METAL BV

Price request
