Awea - BM 1400

  • BrandAwea
  • Type/ModelBM 1400
  • Stock Number8554
  • Year2008
  • WebsiteBM 1400

Technical details

  • Table length1500 mm
  • Table width650 mm
  • Longitudinal X1400 mm
  • Cross Y800 mm
  • Vertical Z700 mm
  • Positions ATC32
  • Positions APC1
  • CNC BrandHeidenhain
  • CNC ModelHeidenHain iTNC530

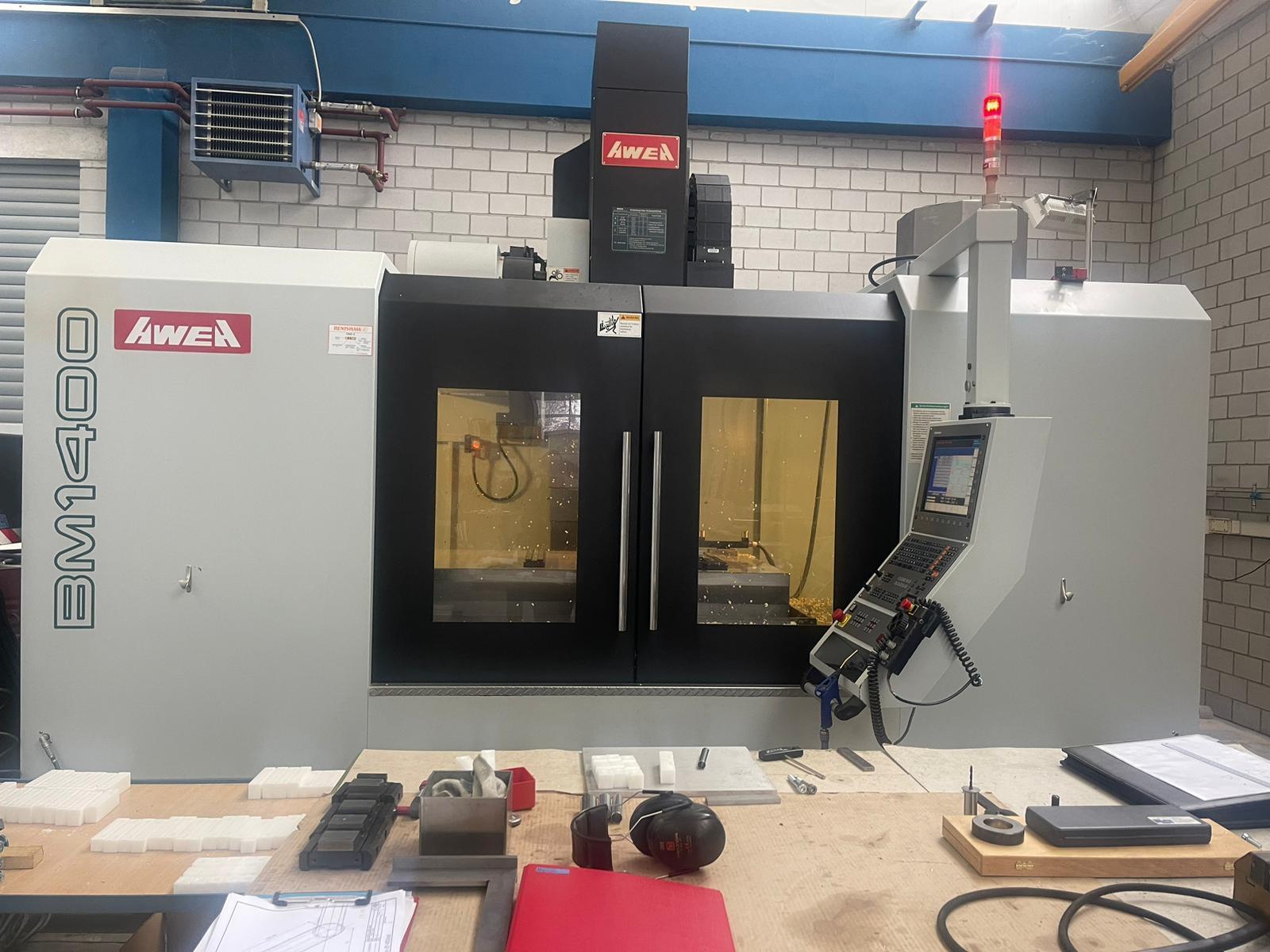

3-axis CNC machine (VMC)AWEA - BM 1400
MACH-ID 8554
Make: AWEA
Type: BM 1400
Control: HeidenHain iTNC530
Year: 2008

2300 Spindle hours
HR 410 Handwheel
OMP-60 Renishaw taster
NC-4 Laser measuring
EONAG 3000 Oil filter mist


X - Travel:               1400mm
Y - Travel:               800mm
Z - Travel:               700mm
Table Length:             1500mm
Table Width:              650mm
Table load:               1200
Feed rate X-Axis:         30000mm/min.
Feed rate Y-Axis:         30000mm/min.
Feed rate Z-Axis:         30000mm/min.
Spindle Taper:            40ISO/Bt/Mk
Power on spindle:         26kW
Speeds / ranges:          12000Rpm
ATC / revolver:           32
Coolant true spindle / Bar:20 Bar
Number of controlled axis:3
Chip conveyor:            Yes
Coolantsystem:            Yes
Length:                   5800mm
Width:                    2900mm
Height:                   3100mm
Weight:                   12000kg

Dealer: MACH4METAL BV

MACH4METAL BV
Price request
