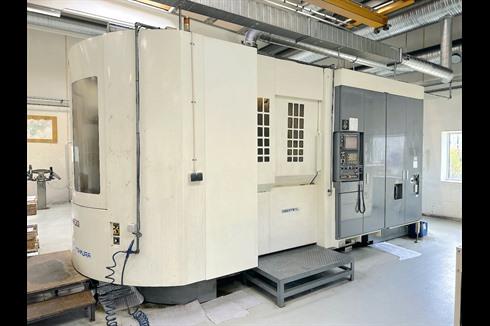

Kitamura - HX630I

Kitamura - HX630I
  • Kitamura - HX630I

Price request
  • BrandKitamura
  • Type/ModelHX630I
  • Stock Number3622
  • Year2008

Technical details

  • Pallet length630 mm
  • Pallet width630 mm
  • Longitudinal X1000 mm
  • Cross Y800 mm
  • Vertical Z820 mm
  • Number of pallets2
  • Positions ATC100
  • CNC BrandFanuc
  • CNC Model16i-MB

Capacity: 1000x800x820mm / ø1000x1100 mm
Year of construction: 2008
   WORKING CAPACITY   Longitudinal (x): 1000 mm
   Vertical (z): 820 mm
   Cross (y): 800 mm
   Table (b): 0,001 °
   Max workpiece size (lxwxh): ø1000x1100 mm
   CNC   Cnc: Fanuc 16i-MB
   SPINDLE   Spindle power: 26 Kw
   Gearbox: 2 step
   Rotating speed: 35-12000 Rpm
   Torque: 380 Nm
   Taper: ISO50
   Internal coolant: 15Bar Bar
   FEEDS   Rapid x: 50 m/min
   Rapid y: 50 m/min
   Rapid z: 50 m/min
   Rapid b: 20 Rpm
   X: 50 m/min
   Y: 50 m/min
   Z: 50 m/min
   TABLE   Floorspace (lxwxh): 630x630 mm
   Capacity: 1200 Kg
   Accuracy (b axis): 0,001 °

   AUTO PALLET CHANGER (APC)   Pallet number: 2
   Loading station: 1
   Pallet surface: 630x630 mm
   Rotating speed: 20 Rpm
   Capacity: 1200 Kg
   Pallet changing time: 6 sec
   ATC   Positions: 100
   Max tool diameter: 125 mm
   Max diam with free adiacent space: 200 mm
   Max tool lenght: 450 mm
   Max tool weight: 20 Kg
   Tool taper: BT50
   Tool changing time: 1,5 sec.

Machine total weight: ≈20500 Kg
Floor space: ≈3220x6512x3499 mm
High pressure: CTS
Tool presetter: SI
Maintenance & use books: Si
Electrical drawings: Si




Dealer: GAMBA GIOVANNI SRL
