Technical details

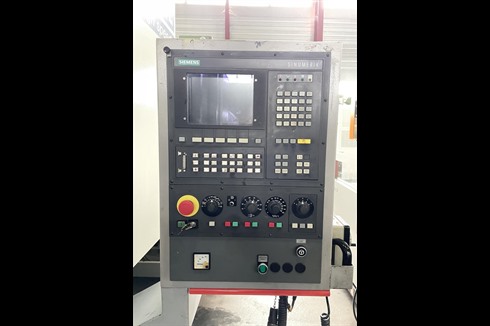

Control: SIEMENS SINUMERIK 810 M
Operating hours: 15198
Technical data
Number of axis total: 3
Table length: 2280 mm
Table width: 450 mm
Number of T-channels: 3
Distance of the T-slots: 150 mm
T-channel width: 18 mm
Longitudinal travel (X-axis): 2000 mm
Transversal travel (y-axis): 400 mm
Vertical travel (z axis): 425 mm
Tool changer:
Number of tools: 20
Tool diameter: 65 mm
Diameter with free adjacent pockets: 180 mm
Tool lenght: 220 mm
Max. tool-weight: 8 kg
Spindle nose SK: 40 DIN 69871
Vertical spindle speeds:
stepless
from: 20 rpm
up to: 10500 rpm
Feeds:
Air connect: 6 bar
Voltage 50 Hz 3x: 400 Volt
Spindle motor: 18 kW
Total power required: 31 kVA
Machine's weight about: 7200 kg
Overall dimensions machine:
Length: 4000 mm
Width: 3010 mm
Height: 3040 mm
Various accessories:
Coolant system
Chip conveyor
Handwheel electroinic
