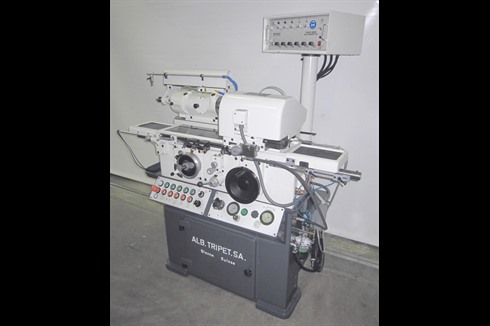

Tripet - MAR 200 AUTOMATIC

Tripet - MAR 200 AUTOMATIC
  • Tripet - MAR 200 AUTOMATIC
  • Tripet - MAR 200 AUTOMATIC
  • Tripet - MAR 200 AUTOMATIC
  • Tripet - MAR 200 AUTOMATIC
  • Tripet - MAR 200 AUTOMATIC
  • Tripet - MAR 200 AUTOMATIC
  • Tripet - MAR 200 AUTOMATIC
  • Tripet - MAR 200 AUTOMATIC

Price request

Technical details

  • Grinding diameter maximum mm
  • Grinding diameter minimum mm
  • Turning diameter mm
  • Grinding depth mm
  • CNC Brand
  • CNC Model


Technical data
Min. internal grinding diameter: 1.0 mm
Max. internal grinding diameter: 50 mm
Grinding depth: 200 mm
Centre height: 132 mm
Workpiece spindle speeds:
from: 150 rpm
up to: 1500 rpm
Max. angle: 90 °
Possible grinding-spindle speeds:
from: 16500 rpm
up to: 120000 rpm
Table speeds:
stepless
up to: 10.00 m/min
Voltage 50 Hz 3x: 380 Volt
Workpiece spindle motor: 0.80 kW
Drive for internal grinding spindle: 3.0 kW
Machine's weight about: 2000 kg
Overall dimensions machine:
Length: 1800 mm
Width: 1000 mm
Height: 1800 mm

Dealer: MULLER MACHINES SA

MULLER MACHINES SA
Price request
