Mori Seiki - ZT1000Y

• Print
• Add to favorites

• BrandMori Seiki
• Type/ModelZT1000Y
• Stock Number9100
• Year2005
• WebsiteZT1000Y

Technical details

• Turning diameter250 mm
• Turning length450 mm
• Turret positions12
• Positions ATC12
• Number controlled axis8
• CNC BrandFanuc
• CNC ModelMAPPS FANUC

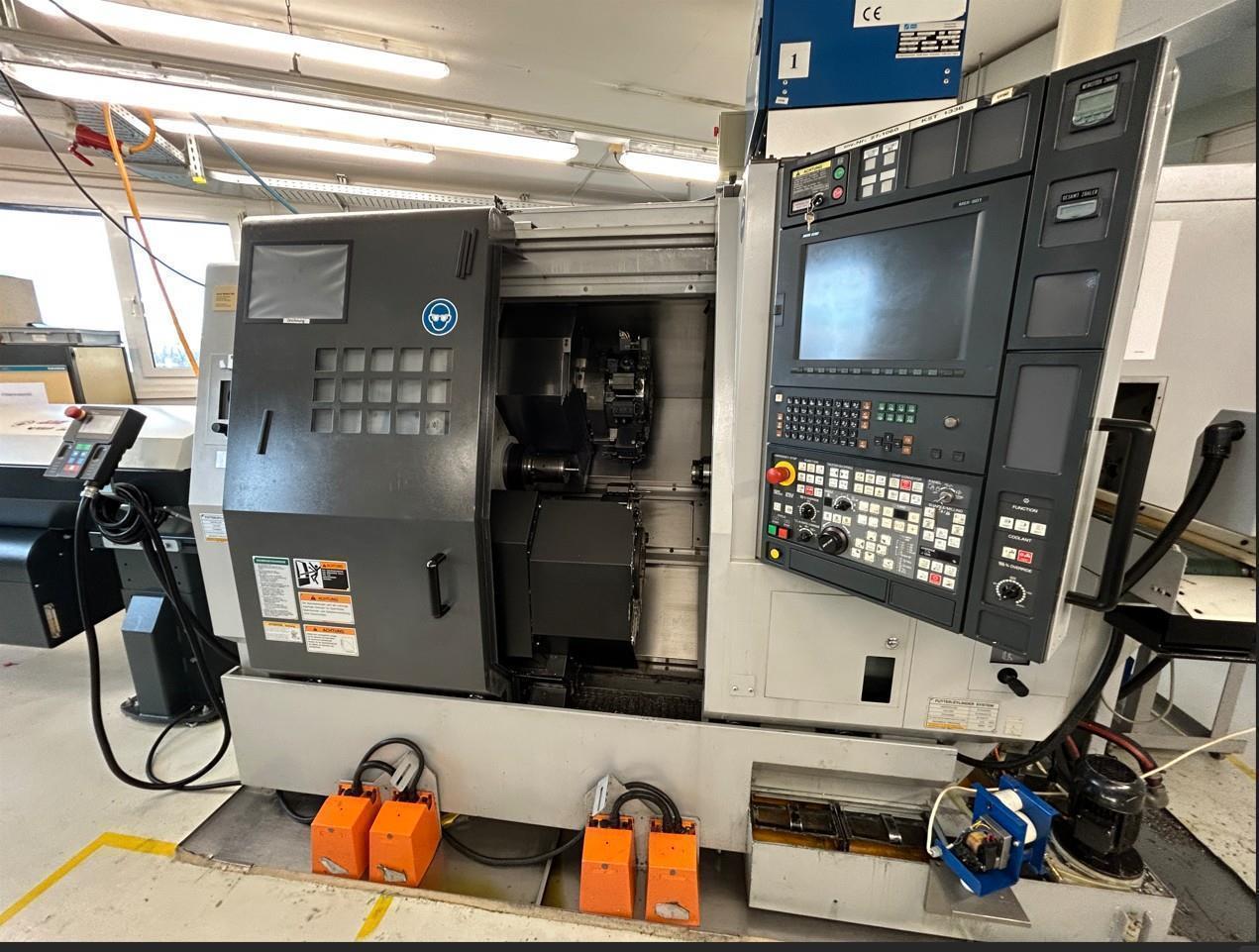

CNC Lathe with y-axisMORI SEIKI - ZT1000Y
MACH-ID 9100
Make: MORI SEIKI
Type: ZT1000Y
Control: MAPPS FANUC
Year: 2005

C-Axis rapid traverve 400 Min
Turret indecing time 0,2 sec for 1 station
Heavy duty cutting (depth cut 6mm) 162.7 mL/Min
LNS Bar feeder new 2017
Large package tooling driven / live tools
8 axis controlled with 2 spindles and turrets

Max. turning Ø:         250mm
X-Axis:                 135mm
Y-Axis:                 40+40 = 80mm
Z-Axis:                 450mm
B Axis:                 510°
Spindle bore:           49mm
Speedrange:             6000Rpm
Spindle power:          30kW
Subspindle speeds:      6000Rpm
Subspindle bore:        49mm
ATC / revolver:         12
Speed live tools:       6000Rpm
Positions lower revolver:12
Speed live tools:       6000Rpm
Length:                 2800mm
Width:                  2000mm
Height:                 2000mm
Weight:                 5000kg

Dealer: MACH4METAL BV

Price request
