Technical details

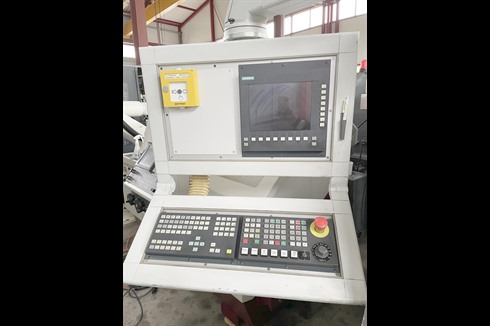

Control: SIEMENS 840 D
Technical data
Number of axis total: 7
Number of spindles: 2
Number of revolvers: 2
Spindle nose: DIN 55026 A4
Spindle hole: 32 mm
Travels:
X1: 180 mm
X2: 195 mm
Z1: 340 mm
Z2: 440 mm
Y1: +40/-40 mm
Y2: +40/-25 mm
Y axis: 70 (-30/+40) mm

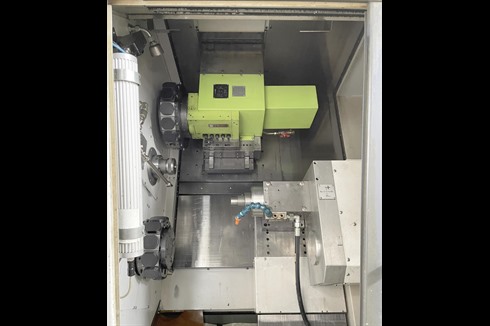

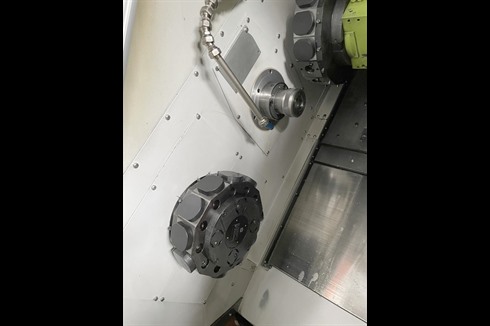

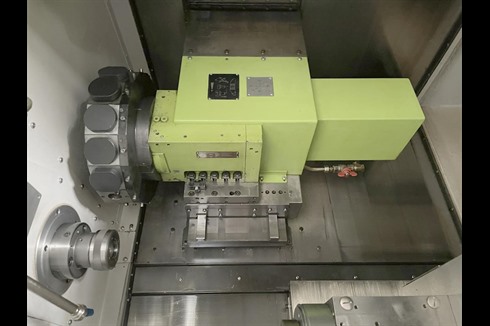

Turret slide: number: 2
Number of positions turret 1: 16
Number of positions turret 2: 12
Driven tools turret 1: 16
Driven tools turret 2: 12
Spindle speeds: 6000 rpm
Power of driven tools: 6 kW
Spindle nose: VDI: 25 DIN 69880
Main spindle:
C axis
Spindle speeds:
stepless
up to: 8000 rpm
Back spindle mobile:
max. speed: 8000 rpm
Power of back spindle: 12 kW
Spindle motor: 7 - 9 kW
Air connect: 6 bar
Voltage 50 Hz 3x: 400 Volt
Total power required: 25 kVA
Total power required: 20 kW
Machine's weight about: 4100 kg
Overall dimensions machine:
Length: 2350 mm
Width: 1770 mm
Height: 1925 mm
Various accessories:
Lamp
Coolant system: 160 l
Bar feeder: LNS
Type: EXPRESS 332 S2
Length of bars max.: 3000 mm

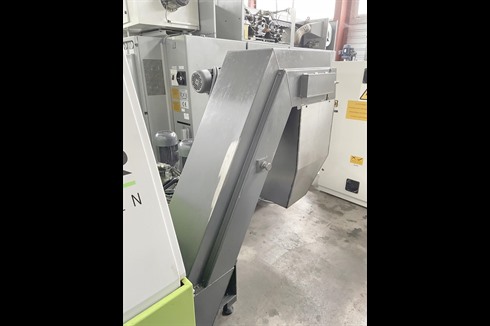

Chip conveyor

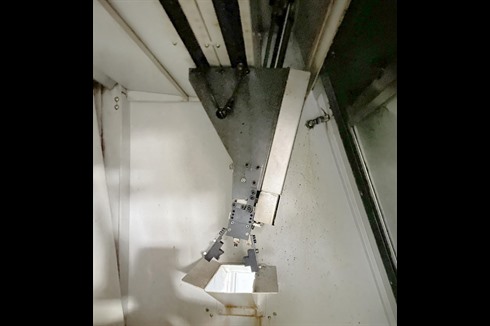

Unloading device
Foot pedal
Switch cabinet Air conditioner
Fire extinguishing system (without bottle)
Status light
Dealer: MULLER MACHINES SA
Price request
