Technical details
CENTRES HEIGHT 525 MM.
CENTRES DISTANCE 1.500 MM.
MAX. Ø OVER THE BED 1.050 MM.
MAX. Ø OVER SADDLE 700 MM.
MAX. Ø OVER THE GAP 1.250 MM.
GAP LENGHT 550 MM.
BED WIDTH 600 MM.
SPINDLE MOTOR POWER 36 HP.
SPINDLE SPEEDS 0
÷ 1.500 RPM.
SPINDLE HOLE 114 MM.
TAILSTOCK QUILL Ø 120 MM.
TAILSTOCK TRAVEL 170 MM.
CNC ECS 2302
TOTAL WEIGHT 11.000 KG.
RETROFITTED IN 2003
COMPLETE WITH:

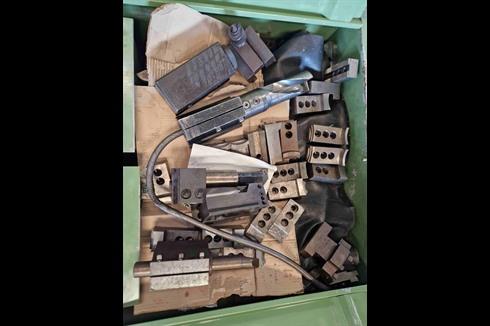

- N. 1 FOUR JAWS TABLE Ø 700 MM.
- N. 1 THREE JAWS HYDRAULIC SELF
CENTERING CHUCK Ø 400 MM.
- N. 1 AUTOMATIC SQUARE TURRET
- N. 1 x 8 POSITIONS TURRET
- TOOL-HOLDERS
- CHIPCONVEYOR
- FULL GUARD
Dealer: NUOVA LOMBARMET SPA
Price request
