Technical details
Netweight 7200 kg
Dimensions 4328x2134x2217 mm
(with conveyor 4328x711 mm)
TECHNICAL DATA
Standard data

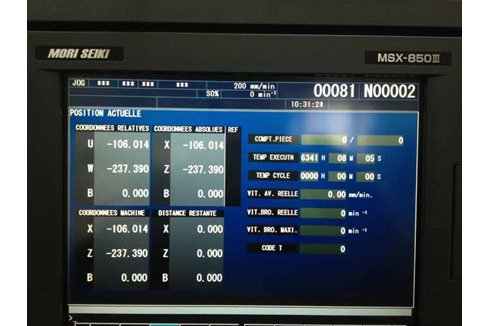

2 axes turning center MORI SEIKI NL 2500 x 1250
Capacity :
Max turning diameter Ø 356 mm
Standard turning diameter Ø 275 mm
Swing over bed Ø 923.8 mm
Swing ober cross-slide Ø 755 mm
Between centres 1250 mm
Max machining length 1298 mm
Bar work capacity 80 mm (limited depending on chuck and
cylinder type)
Travel X 260 mm
Travel Z 1345 mm
Main spindle1 : 4000 min-1 (depending on restrictions
Imposed by work clamping device, jig and
tool used, it may not be possible to rotate
at maximum spindle speed)
Number of spindle speed ranges 2
Spindle nose type JIS A2-8
Through-spindle hole Ø 91 mm
Inner Ø of spindle bearings 140 mm
Chuck Ø 250 mm
Turret : 12 posts (or 10 posts)
Height of angled tool shank section 25 mm
Diameter of boring bar shank section 50 mm
Rapid traverse rate X / Z : 30 m/min
Jog feedrate 0 to 5 m/min
Tailstock travel : 1284 mm
Tailstock spindle diameter 110 mm
Tailstock spindle taper hole MT5
Spindle 1 drive motor 18.5/15 kW
Feed motors X / Z 3.5 kW
Hydraulic pump motor 1.5 kW
Lubricant pump motor 0,02 kW
Coolant pump motor 0.52 kW
Oil cooler pump motor 0.5 kW compressor
0.4 kW circulating pump
Electrical supply 28.3 kVA
Oil tank capacity 10 L
Lubricant tank capacity 4 L
Coolant tank capacity 345 L
Oil-temperature controller capacity 10 L
Options :
Chips conveyor
Tailstock
Touch-test
errors and omissions excepted-data given without obligation
Inventory Nr. 3132009, machine with :
3-jaws chuck Kitagawa BB210A8, Ø 254 mm., A2-8 direct mounting, passage Ø 80 mm., max 3600 min-1
12 Stations with fix tools
Touch-test
Chips conveyor
Between centres 1250 mm
Tailstock
