Technical details

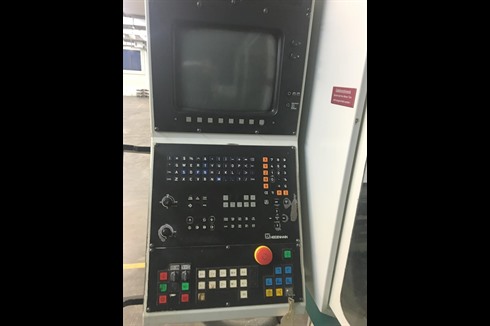

Control: HEIDENHAIN TNC 407/415
Operating hours: 39000
Technical data
Spindle nose:: SF 32
Drill capacity in steel: 30 mm
Threat cutting in steel M: 24
Milling capacity: 100 cm3/min
Spindle stroke: 180 mm
Spindle speeds:
from: 50 rpm
up to: 9200 rpm
Table length: 1230 mm
Table width: 410 mm
Min. distance from table to spindle: 0 mm
Max. distance from table to spindle: 620 mm
Longitudinal travel: 700 mm
Transversal travel: 315 mm
Vertical travel: 495 mm
Feeds: 1 - 900 mm/min
Rapid traverse:: 4 m/min
Voltage 50 Hz 3x: 380 Volt
Power: 16 kW
Machine's weight about: 3200 kg
Overall dimensions machine:
Length: 2500 mm
Width: 2500 mm
Height: 2450 mm
Various accessories:
Dividing attachment 4th axis
with teilstock
3-jaw chuck diameter: 160 mm
Collet device
Set of toolholders
Handwheel electroinic
Touch Probe Renishaw
Dealer: MULLER MACHINES SA
Price request
