Lauffer - RPT 100

Lauffer - RPT 100
  • Lauffer - RPT 100
  • Lauffer - RPT 100
  • Lauffer - RPT 100
  • Lauffer - RPT 100
  • Lauffer - RPT 100
  • Lauffer - RPT 100
  • Lauffer - RPT 100
  • Lauffer - RPT 100
  • Lauffer - RPT 100

Preisanfrage

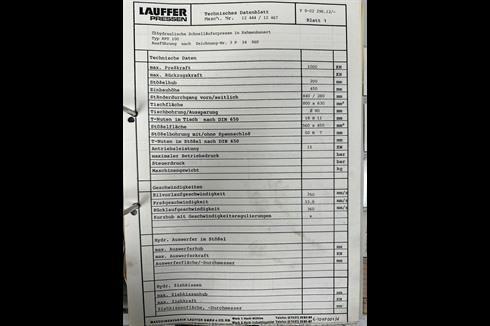

Technische Details

  • Kapazität100 t
  • Stosslänge200 mm
  • Max. Breite10 mm
  • Max. Abstand zwischen Greifer710 mm
  • CNC MarkeNo CNC
  • CNC Modellx

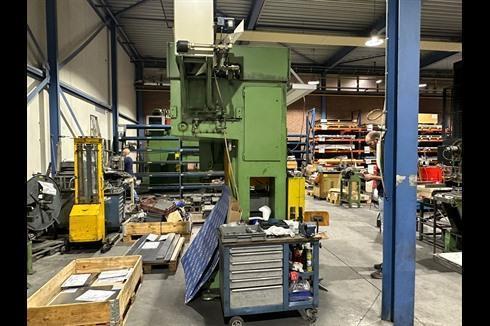

Lauffer PT Hydraulic frame presses for metal forming; From 630 kN to 10.000 kN freely configurable for your application. Whether forming, punching, cutting or embossing, solid and variable press frame concept allows individual adaptation of the press size to your requirements. For smaller presses in monobloc design

R-PTFrame presses with column-guided ram, centric cutting shock-damping and fixed stop


Capacity Kg:           100000
Distance between column:710mm
Table Length:          710mm
Table Width:           560mm
Table Height:          450mm
Ram stroke:            200mm
Approche speed:        350mm/min.
Working speed:         34mm/min.
Return speed:          360mm/min.
Power:                 15kW
Length:                2600mm
Width:                 1600mm
Height:                3100mm
Weight:                5300kg
