Hermle - C800 V

• Drucken
• Zu Favoriten hinzufügen

• FabrikatHermle
• TypC800 V
• Lagernummer3885
• Baujahr2000
• WebsiteC800 V

Technische Details

• Tischlänge mm
• Tischbreite mm
• Längsachse X mm
• Quer Y mm
• Vertikal Z mm
• Anzahl Werkzeugposition
• Anzahl Paletten
• CNC Marke
• CNC Modell

Stock No.: 3885
MACHINING CENTER VMC
Manuf.: HERMLE, Type: C800 V

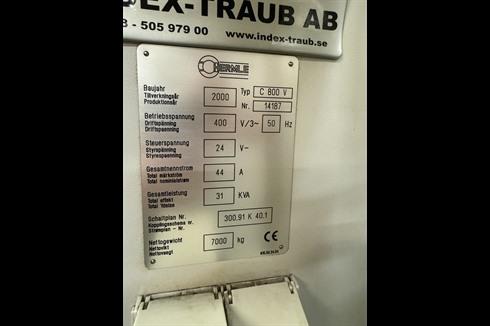

Serial No.: 14187, Build: 2000

Specifications:

Table Size              1000 x 560 mm
Longitudinal travel (X) 800 mm
Cross travel (Y)        600 mm
Vertical travel (Z)    500 mm

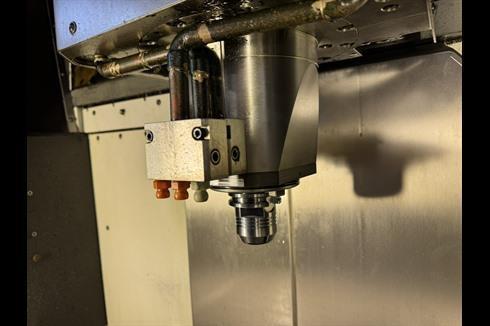

Spindle taper          SK 40
Stepless spindle speeds 10.000 rpm
Spindle motor          25/16.8 Kw
Total power            43 KVA
Toolchanger ATC        30 pos.
Feeding                1-2000/30000 mm/min
Rapid feeding          35 m/min
Control system          Heidenhain TNC 430  manuf.
Spindel Running time    9318 Hours

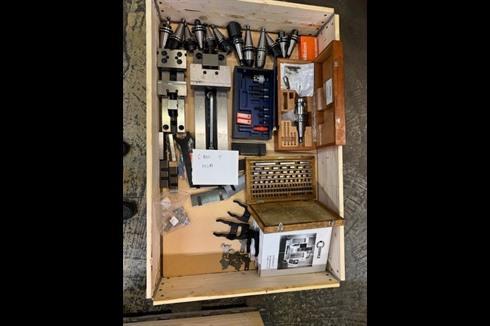

Accessories:
Chip conveyor.
Inspection Probe        Renishaw
Cooling throug spindle
Spindle cooling
Various accessories.
Working manuel
Delivery time          August 2024

Length: 2700 mm, Height: 2930 mm, Width: 2210 mm, Weight: 7000 kg
